All About Air Operated Double Diaphragm Pumps

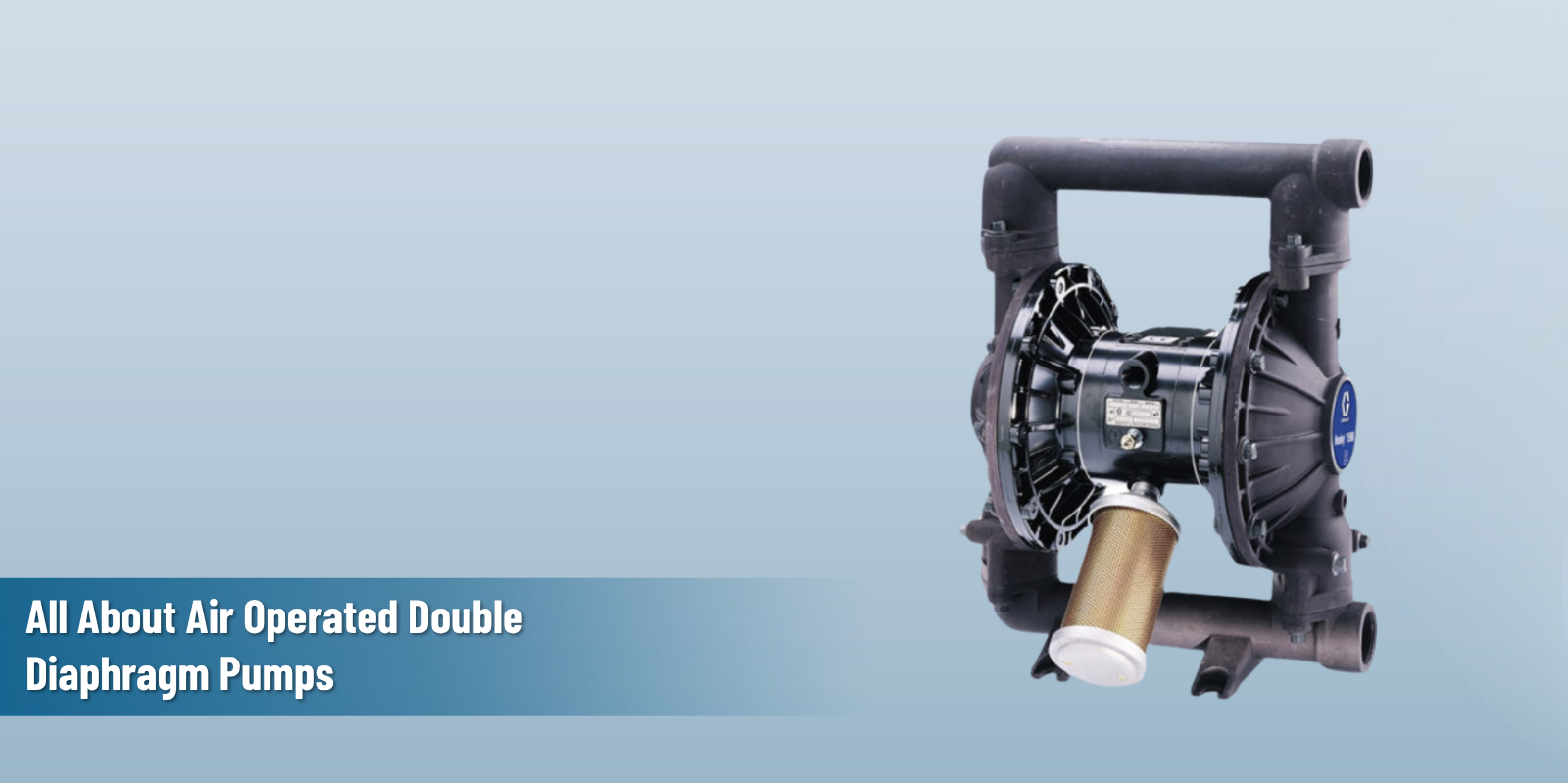

Feature image for the blog on Air Operated Double Diaphragm Pumps

All About Air Operated Double Diaphragm Pumps

Table of Contents

In this blog, we’ll dive into one of the most versatile and dependable workhorses: the Air Operated Double Diaphragm (AODD) pump or Air Operated Pump. AODD pumps use expanding chambers to transport a fixed amount of fluid with each cycle. Unlike different pumps that rely on impellers or gears, AODD pumps use diaphragms – flexible membranes – to create suction and push fluid through the equipment.

How does AODD Pump Work?

AODD pumps operate with terrific simplicity. Compressed air enters the pump and pushes on one diaphragm, causing it to expand into a chamber. At the equal time, the other diaphragm contracts which creates a vacuum in the different chamber. This attracts fluid in thru the inlet valve.

As the compressed air channel shifts, the primary diaphragm contracts, pushing the fluid out of the discharge valve, and the cycle repeats.

The beauty of AODD pumps lies in their design:

  • No Shafts or Seals: Since there aren’t any rotating parts within the fluid chamber, AODD pumps dispose of the need for complex seals, decreasing the danger of leaks and simplifying protection.
  • Handles Thick and Viscous Fluids: AODD pumps are adept at managing thick, viscous fluids, slurries, and even fluids that could damage different pump kinds.
  • Self-Priming: These pumps can self-prime, that means they could start working even without liquid initially stuffed inside the pump. This makes them ideal for applications where the fluid supply might be located above the pump.

Applications of Air Operated Double Diaphragm pumps:

Here are a few common applications of AODD Pumps:

  • Chemical Processing: AODD pumps can thoroughly switch corrosive chemical compounds with out leaking, making them ideal for chemical processing plants.
  • Food and Beverage Production: In the food and beverage industry, AODD pumps can manage syrups, sauces, and different viscous materials with out compromising hygiene requirements.
  • Painting and Coatings: These pumps are ideal for moving paints, primers, and different coatings because of their potential to deal with thick liquids and abrasive debris.
  • Wastewater Treatment: AODD pumps can efficiently circulate wastewater and sludge in remedy flora, handling solids and viscous materials correctly.
  • Mining and Construction: In harsh mining and production environments, AODD pumps can deal with abrasive slurries and debris with minimal upkeep.

Factors to Consider while choosing the Right pump:

With such a lot of AODD pump alternatives available, here are a few factors to consider while making your choice:

  • Flow Rate and Pressure: Determine the required flow rate (quantity of liquid moved in step with unit time) and pressure (pressure exerted by way of the pump) in your software.
  • Fluid Compatibility: Ensure the pump substances are like minded with the sort of fluid you will be shifting.
  • Viscosity: Consider the viscosity (thickness) of the fluid – AODD pumps can handle a huge variety of viscosities, however selecting the right size and configuration is vital.
  • Portability: If portability is vital, don’t forget the scale and weight of the pump.

Conclusion:

AODD Pumps are a reliable choice for diverse fluid handling needs. AODD pumps offer a robust and versatile answer for a wide variety of fluid transfer applications. Their easy design, self-priming abilties, and capability to transfer hard fluids lead them to a treasured asset in numerous industries.

At Patvin Engineering, we apprehend the importance of selecting the appropriate AODD pump as per your requirement. We provide a huge range of wonderful Air Operated Double Diaphragm Pumps, designed for various programs and built with durability in mind. Our experts can assist you to pick an appropriate AODD pump to satisfy your unique necessities and make sure most effective overall performance for your operation. Contact us today to discover our selection of AODD pumps and find the best solution for your fluid handling needs.

FAQs:

  • What are the benefits of AODD pumps compared to different pump sorts?

AODD pumps provide numerous benefits such as:

  1. Simplicity: Their design and not using a shafts or seals minimizes protection desires.
  2. Versatility: They can take care of a extensive range of fluids, which include thick, viscous materials and even people with abrasive particles.
  3. Self-priming: They can begin working without being full of liquid to start with, making them best for specific programs.
  4. Safe operation: The lack of seals removes leak points, enhancing safety when handling unsafe fluids.
  • Are AODD pumps noisy?

AODD pumps can generate noise because of the compressed air operation. However, in comparison to some other pump sorts, they typically operate at a decrease noise degree.
