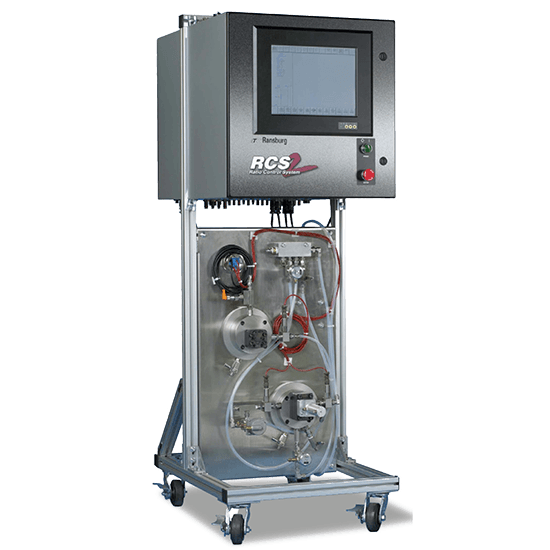

RCS 2 Metering & Mixing

RCS 2 is the latest generation 2K and 3K mixing and metering Ratio Control System. If you’re looking for applications with short trigger times, fast response, low latency, low flow, etc. this system can be the perfect choice.

It is known for its efficiency and reliability. This Radio Control System features magnetically coupled metering pumps which prevent shaft seal leaks. This system can be used with solvent-borne or waterborne materials.

RCS 2 can be easily integrated with automatic and manual systems with one or multiple applicators. They can be used with rotary atomizers, bells, disks, and either electrostatic or non-electrostatic spray guns.

 The software offers user-friendly programmable alarm tolerances, a programmable pot-life timer, and multiple flow rates and ratios. The best part about this RCS 2 is it can accommodate color-to-color changes with ease and without any color carryover.


  • A common computer based graphical user interface
  • Built-in system diagnostics
  • Intelligent time and date stamped fault messages
  • Configurable fault conditions and tolerance
  • 199 parameter sets per gun
  • Comprehensive context-sensitive help screens
  • Pot-life timer and pressure pot volume monitoring and alarming
  • Forcible discrete and analog inputs and outputs
  • Ability to update (flash) firmware on-site with a laptop
  • Password protection of all operational parameters
  • Data acquisition style trending screens
  • Proportional flow rates based on number of applicators being triggered


  • A programmable 10-color, 12-step color change sequencer
  • In-booth intrinsically safe operator interface panel
  • The ability to be retrofitted to existing RCS fluid panels
  • EtherNet/IP communication
